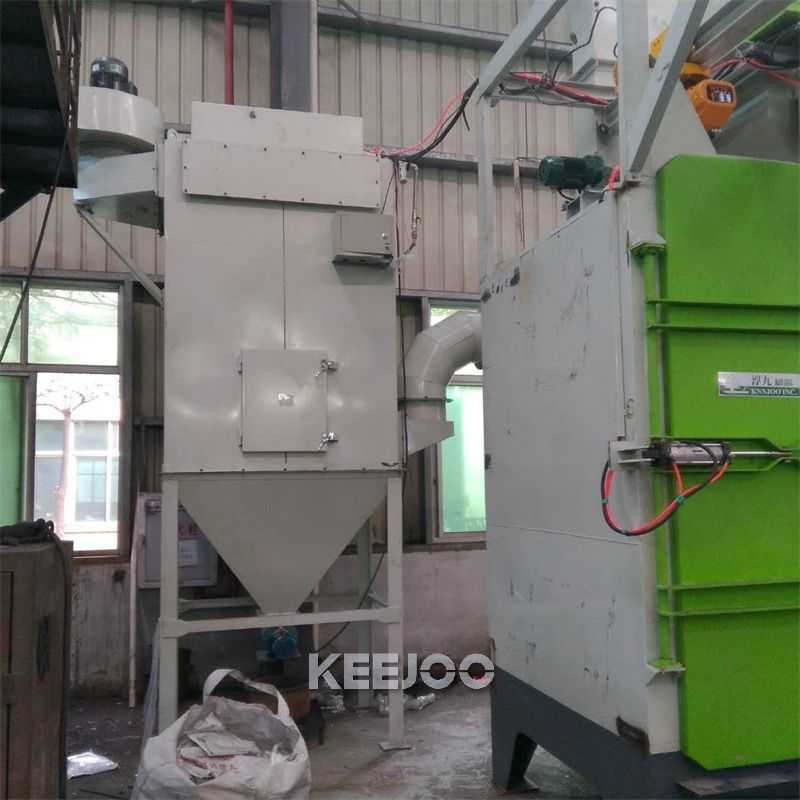

PLC Control Forging Parts Cleaning Spinner Hanger Shot Blasting Machine

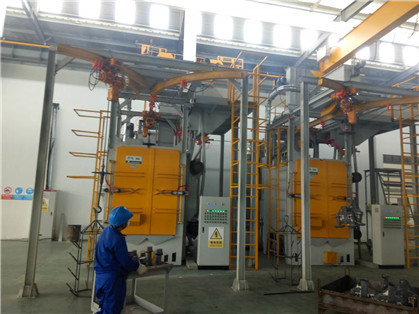

Double Hanger Hook Type Sand Blasting Machine

The hook shot blasting machine is a versatile and efficient solution for surface cleaning and strengthening processes. It offers several advantages that set it apart from other shot blasting machines:

1. Enhanced Productivity: The hook shot blasting machine is designed to maximize productivity. It features a large load capacity, typically ranging from 900 to 1300 mm in diameter and 1300 to 3500 mm in height. With a maximum load capacity of 10,000 kg, it can effectively handle medium to large workpieces, resulting in efficient processing.

2. Versatility in Applications: This type of shot blasting machine is highly flexible and suitable for a wide range of workpieces. It can handle various castings, forgings, weldments, and heat-treated parts. Moreover, it excels in cleaning and strengthening fragile and irregularly shaped workpieces, as well as thin and thin-walled parts.

3. User-Friendly Operation: Operating the hook shot blasting machine is simple and straightforward. Operators can easily load the workpiece onto the machine and initiate the cleaning process with the push of a button. The machine completes the cleaning within a short timeframe, typically in 5-7 minutes, ensuring quick turnaround times.

4. Superior Cleaning Efficiency and Quality: The hook shot blasting machine employs a high-performance BMD shot blaster. This blaster generates a significant shot-blasting quantity and high shot-blasting speed, resulting in improved cleaning efficiency. It effectively removes dust and residual shots from workpiece surfaces, ensuring a thorough and high-quality cleaning outcome.

5. Optimized Design and Layout: The design of the hook shot blasting machine incorporates advanced computer-aided design (CAD) techniques. This enables a more precise selection and layout of the shot blaster, increasing the utilization rate and labor productivity of the machine. Additionally, it minimizes wear on the chamber guard plate, enhancing the overall durability of the equipment.

6. Compact and Pitless Design: The hook shot blasting machine features a compact structure that eliminates the need for a pit. This design eliminates the cost and time associated with pit construction. Furthermore, it eliminates issues such as pill sand corrosion and caking in the hoist caused by water storage in the pit, making it particularly advantageous for users in regions with high water tables.

7. Durable and Easy-to-Replace Chamber Protection: The cleaning chamber of the hook shot blasting machine is equipped with a durable hot rolling Mn13 board for protection. This board offers a longer service life compared to traditional rubber board protection. Additionally, it is easy to replace and provides an aesthetically pleasing appearance, making it a popular choice for chamber protection.

Technical data

Application

This type of cleaning machine is suitable for surface cleaning or strengthening treatment of small and medium-sized castings and forgings in the casting, construction, chemical, electrical, machine tool and other industries. It is especially suitable for surface cleaning and shot blasting of castings, forgings and steel structural parts of many varieties and small batches to remove a small amount of sand, sand core and oxide scale on the surface of the workpiece; it is also suitable for surface cleaning and strengthening of heat-treated parts ; Especially suitable for the cleaning of slender and thin-walled parts that are not suitable for collision.

Working principle

When the machine is working, when the preparation work (dust removal system, hoist, screw conveyor, etc.) is completed, the machine starts to work normally. First, the hook descends to lift the workpiece, rises to a certain position, and then enters the shot blasting room along the track, and stops and starts to rotate when it reaches the predetermined position. At this time, close the gate of the shot blasting room, open the shot blasting device, and open the blasting gate, Start shot blasting the workpiece. Repeat this process until the work is completed, and shut down in order.

Our company

Qingdao KNNJOO machine Inc. is the subsidiary corporation of joint venture set up by Qingdao foundry machine CO.,LTD. and taiwan APC company, the company is mainly manufacture advanced shot blasting machine, shot blasting equipment and foundry machine. The company introduct and develop more than one hundred kinds of shot blasting machine and shot peening machine, more than 20 products filling a domestic gap in this field, the products applied to many well-known enterprises such as Thyssen Krupp, SIEMENS, FAW-Volkswagen, Cummins engine, Dongfeng Automobile,Weichai Power, Jinan heavy duty truck, China high-speed rail, Bombardier, Chery Automobile, Mercedes-Zenz, Hitachi nuclear industry, Fuji Heavy Industries, Tangshan gear, AISIN, ALSTOM, Doosan, Caterpillar and etc. And the products are exported to 49 countries around the world such as Spain, France, United States, South Korea, Japan, Singapore, Australia, Russia and etc. The company enjoy a high reputation and reputation in the world.
