Rotary Table Shot Blasting Machine For Casting Forging
Rotary Table Shot Blasting Machine For Casting And Forging
Product description
Rotary Table Shot Blasting Machine Table Blasting Blasting Machine are mainly suitable for cleaning the fragile workpiece. It can also be used reinforce the workpiece surface. By blast cleaning, The turntable rotary shot blasting machine can clear up the workpiece surface corrosion effectively and dirt covers, improve the surface quality of the workpiece; while, can also improve the internal stress of the workpiece, reach to strengthen the aim, to improve fatigue strength of the workpiece.
Technical data
type item | ZT012 | ZT012F | ZT012G | ||
Size of cleaning chamber | mm | Ø1350*560 | Ø1350*860 | Ø2654*560 | |
size of cleaning piece | mm | 600*250*250 | 600*250*250 | 1000*500*250 | |
Turn table | loading capacity | kg | 400 | 400 | 1000 |
diameter | mm | Ø1200 | Ø1200 | Ø2500 | |
Blasting apparatus | abrasive flow rate | kg/min | 200 | 2*150 | 2*250 |
power | kw | 11 | 7.5*2 | 15*2 | |
Lifiting amount of elevating conveyor | t/h | 15 | 15 | 30 | |
Separating amount of separator | t/h | 15 | 15 | 30 | |
Abrasive initial filling | kg | 400 | 350 | 1500 | |
Rotary Table Shot Blasting Machine For Casting And Forging
Product description
Rotary Table Shot Blasting Machine Table Blasting Blasting Machine are mainly suitable for cleaning the fragile workpiece. It can also be used reinforce the workpiece surface. By blast cleaning, The turntable rotary shot blasting machine can clear up the workpiece surface corrosion effectively and dirt covers, improve the surface quality of the workpiece; while, can also improve the internal stress of the workpiece, reach to strengthen the aim, to improve fatigue strength of the workpiece.

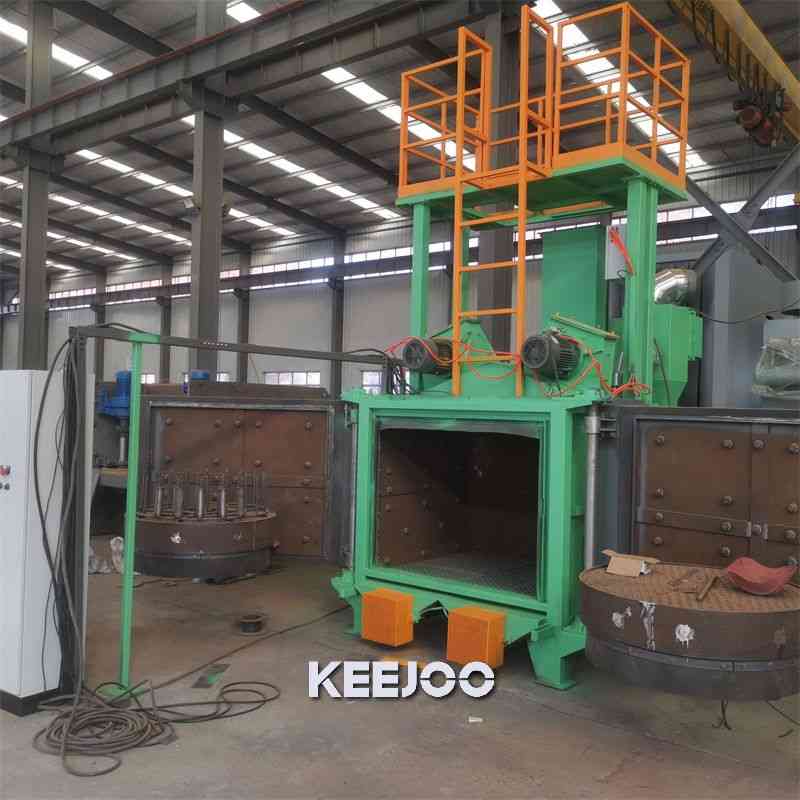

Rotary Table Shot Blasting Machine
The layout and arrangement of blast wheel is all through 3D dynamic simulation, the all view, positions are determined by the
computer design.
Each blast wheel and shot blasting room forms a certain angle, so that the shot stream thrown form dense coverage area of
uniform cross-mesh, shot thrown from the workpiece above to the surface of the workpiece meanwhile.
Rotary Table Shot Blasting Machine
The layout and arrangement of blast wheel is all through 3D dynamic simulation, the all view, positions are determined by the
computer design.
Each blast wheel and shot blasting room forms a certain angle, so that the shot stream thrown form dense coverage area of
uniform cross-mesh, shot thrown from the workpiece above to the surface of the workpiece meanwhile.
