Rotary Hook Shot Blasting Machine Used For Surface Treatment And Deburring Of Aluminum Parts
Product description

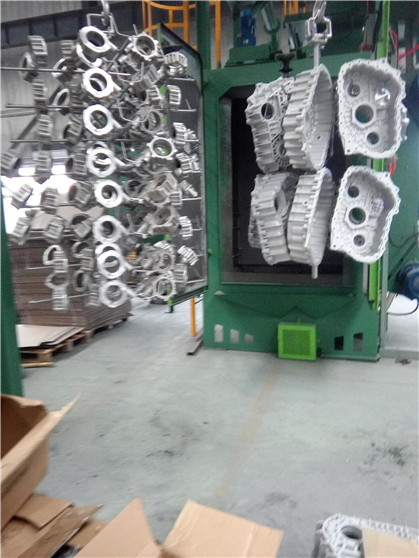

KZP rotary hook shot blasting machine is especially suitable for surface treatment and deburring of aluminum parts, rust removal of forgings and sand removal of castings, especially for workpieces whose shape and size are not suitable for turning.
Equipment composition and structural characteristics

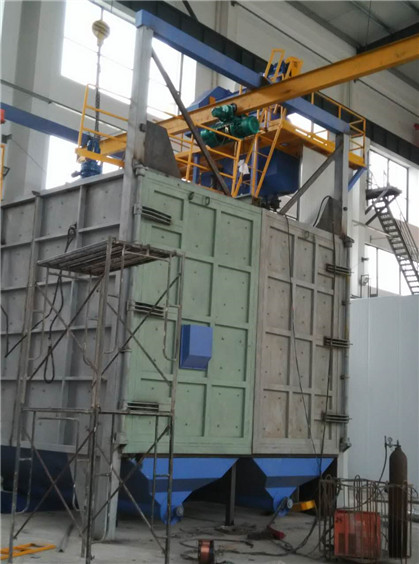

This machine is mainly composed of shot blasting machine, cleaning room, hook revolution (3-station conversion or 2-station conversion) and rotation device (shot blasting station autobiography), projectile circulation system (including screw conveyor, hoist, It is composed of separator, flow adjustment device), door assembly, dust removal system and electrical system.
Advantage
High flexibility and reliability
Fast running speed and less time-consuming auxiliary processes
Low maintenance costs and low risk of failure
Specification
| KZP-2-3/8 | KZP-2-3/9 | KZP-2-5,5/12 | KZP-2-8,5/15 | KZP-3-6/11 |
Maximum loading capacity (kg) | 150 | 150 | 300 | 600 | 300 |
Maximum rotation diameter (mm) | 300 | 300 | 550 | 850 | 600 |
Maximum hook height (mm) | 800 | 900 | 1200 | 1500 | 1100 |
Number of shot blasters | 2 | 2 | 2 | 2 | 2-4 |
Power per blast wheel (kW) | 5.5(4) | 3.75 | 5.5 | 7.5 | 5.5-15 |
Application
Surface treatment and deburring of aluminium parts
Derusting of forgings
Casting sand removal
