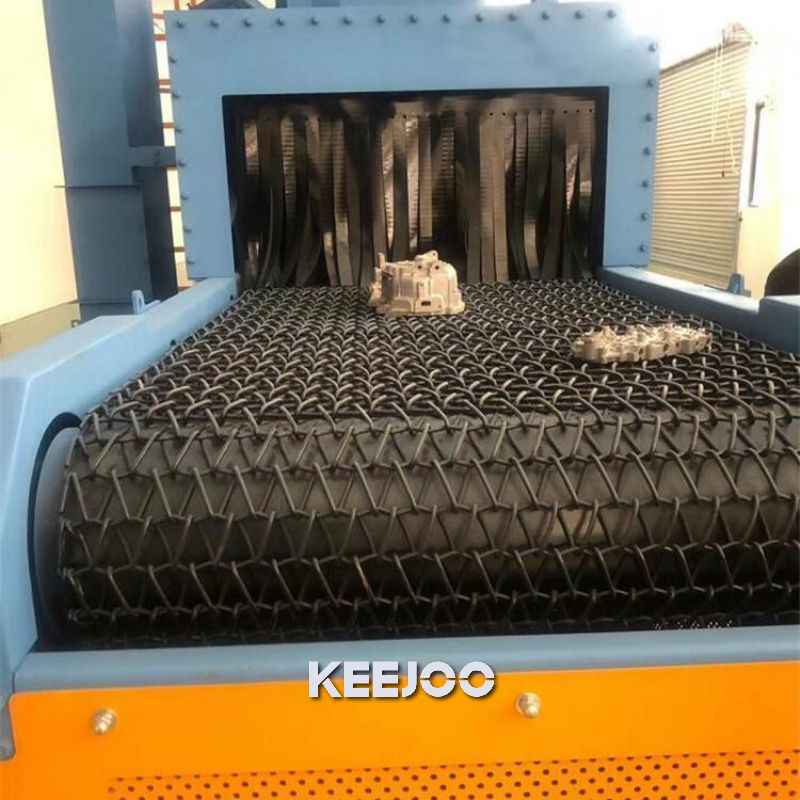

Hign Quality Automatic Wire Mesh metal sheet Belt Shot Blasting Machine

Wire mesh belt shot blasting machine workshop site

Wire Mesh Shot Blasting Machine Features:

This equipment is a mesh belt conveyor through type automatic shot blasting cleaning  equipment, Suitable for complete, comprehensive and continuous shot blasting processing of sheet metal parts, die-casting parts, forging parts, and small and medium-sized and complex workpieces that are afraid of collision, Make it obtain a clea surface with a certain roughness, increase the adhesion of the paint film, and improve the surface quality and anti-corrosion effect.

This equipment is mainly used for rust removal and painting, cleaning of structural parts and cleaning of oxide scale. In addition, this machine is also used to clean the oxide scale and residual coating of other metal parts.

4.The blast wheel is a key component in various shot blasting equipment,and is widely used in the surface  cleaning and pretreatment of castings,forgings,weldingparts,heat treatment parts,and surface strengthening processes of gears,springsand other mechanical parts.

Using German technology and independent research and development technology,the technical performance of the equipment reaches the highest level in Asia. The configuration, quality and performance of this equipment can ensure that ,the technology in the industry is not behind for ten years.

This equipment is a mesh belt conveyor through type automatic shot blasting cleaning equipment, Suitable for complete, comprehensive and continuous shot blasting processing of sheet metal parts, die-casting parts, forging parts, and small and medium-sized and complex workpieces that are afraid of collision, Make it obtain a clean surface with a certain roughness, increase the adhesion of the paint film, and improve the surface quality and anti-corrosion effect. Using German technology and independent research and development technology, the technical performance of the equipment reaches the highest level in Asia. The configuration, quality and performance of this equipment can ensure that the technology in the industry is not behind for ten years.

The complete set of equipment of this machine includes shot blasting room, auxiliary

room, abrasive control unit,shot blasting system, abrasive recycling and sorting storage

system, ventilation and dust removal system, mesh belt conveyor system, electrical

control system, maintenance platform, safety system, etc. Mechanical and electrical

systems are equipped with reliable safety protection devices. The shot blasting

equipment complies with the relevant standards, certifications and requirements of

EU CE, German TUV, and French BV.

Delivery and payment method:

We support different shipping methods and payment methods,including:FOB,EXW,CIF,

etc.

The payment term is 30% deposit by T/T,the balance paid before delivery or L/C at

sight,etc.

Advanced technological innovation

In the aspect of the core part of the machine - blast wheel, the company has invested

millions yuan to proceed the technological provement.



The abrasive control unit is the abrasive supply technology of German AGTOS company.

It adopts pneumatic control pull-out opening and closing technology. Compared with the

old fan technology, it has higher precision, longer life, superior performance, zero failure

rate, and stronger sealing.

The abrasive flow rate can be adjusted so that when different productivity is achieved,

the blasting amount can be changed accordingly to ensure the quality of the surface

treatment of the workpiece.

The shot blasting volume can be dynamically displayed indirectly through the motor

ammeter on the console. The shot controller has no jamming or missing shots, and

has online detection of the gate opening and closing status, and timely coordination

with the workpiece to prevent the shot blasting device from being empty.Throw the

blow chamber body.



The abrasive control unit is the abrasive flow control mechanism of the shot blaster,

which can be opened and closed electrically or pneumatically.The abrasive control

unit is the abrasive flow control mechanism of the blasting machine and the opening

angle and closing angle of the unit can be controlled by electric or pneumatic.

The abrasive flow rate is displayed by a digital ammeter on the electric control cabinet,

and the actual flow rate of the abrasive can be accurately known according to the

current value; the separator sand storage hopper is set with a level meter to monitor

the abrasive reserve.

Upholding the quality first

The area which the company involved is including the shot blasting machine,

core shooter, sand mixer, environmental protection equipment, fan, wear-resistant

material and steel shot,etc.

The abrasive controller without missing abrasive phenomenon, and has a online testing

of gate open or close status. Timely cooperation with the workpiece in place to prevent

abrasive hit the empty room.

KNNJOO machine Inc.

Qingdao KNNJOO machine Inc. is the subsidiary corporation of joint venture set up

by Qingdao foundry machine CO.,LTD. and taiwan APC company, the company is

mainly manufacture advanced shot blasting machine, shot blasting equipment and

foundry machine.

Modular Separation System with German Technology The machine uses advanced

three-stage splitter with Germany AGTOS modular structure. Performance is more

superior, maintenance costs reduced by 60%.The separation efficiency of the

separators is increased to 99.9%, and the impurities such as sand in qualified abrasives

are less than 0.1%.The total amount of shots is monitored to ensure that there are enough

shots during shot blasting.


A minimum level gauge and an automatic replenishing device are installed under the

shot hopper to ensure that the throwing head is working under full material.

The flowof the pellets circulating in the pellets is monitored by a digital display ammeter,

and the flow of the pellet gate is adjusted according to the digital displayed current to

ensure the normal circulation of the pellets in the system to prevent the pellets from

blocking.

If blockage occurs, the PLC will alarm in real time and close the pill supply system to

prevent the accident from expanding.

On the basis of upholding the quality first, constantly improve the industry chain, weed

through the old to bring forth the new to meet the application of different functions in

the industrial chain. Company’s products own high technology, the whole variety,

rigorous process, and often take part in bid from Europe and the United
States,

There are many senior engineers, foreign engineers and other thirty research personnel

in the company, and the company have first-class installation and commissioning team

and experienced front-line manufacturers, which are effective guarantee for the
products’ custom made, research and development, manufacturing and delivery.

Our team:

There are many senior engineers, foreign engineers and other thirty research personnel

in the company, and the company have first-class installation and commissioning team

and experienced front-line manufacturers, which are effective guarantee for the

products’ custom made, research and development, manufacturing and delivery.

Our service:

1.Installation and commissioning issue:



We will send 1-2 technicians to assist with machine installation and commissioning,

customer pays for their tickets,hotel and diet,etc. Customer need arrange 3-4 skilled

worker and prepare installation machinery and tools.

2.Warranty time:

12 months from date of commissioning completion,but no more than 18 months from

date of delivery.

3.Supply full English documents:

Including foundation drawings,manual book,electric wiring diagram,electric manual

book and maintenance book,etc.

4.Good after-sales service:

We provide the wearing parts warranty, and online and offline installation services.

5.Supply replacement part:

Provide original factory spare parts.

The equipment is a complete brand new equipment (including all parts, components

and accessories) produced by our company. It has the characteristics of advanced

technology, durable, reasonable structure design, easy to operate, easy to maintenance

and low operating cost.

The whole equipment includes shot blasting room, front and rear auxiliary room,

spray paint and drying system, abrasive control unit, shot blasting system,

abrasive recycling, sorting and storage system, abrasive blowing unit,

ventilation and dust removal system, roller conveying system, electrical control

system, maintenance platform, safety system, etc. Mechanical and electrical

systems shall be equipped with reliable safety protection devices.

Shot blasting equipment meets the relevant standards, certification and

requirements of European Union CE, German TUV, and France BV.

For more details, please contact with us.
