PLC Control Turntable Shot Blasting Machine Direct Coupling Blast Wheel RFQ

Automic High quality Turn table shot blasting machine for casting forging parts cleaning direct-coupling

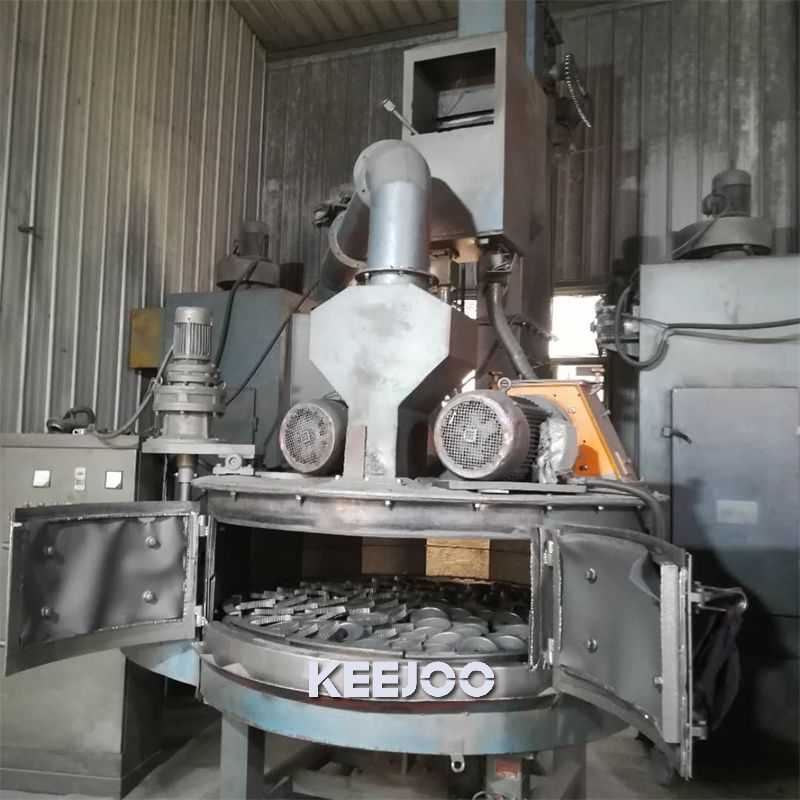

The ZJ015 type shot blasting machine is a horizontal rotary table type shot blasting cleaning equipment. It consists of a shot blasting room, a turntable, a turntable transmission system, a turntable protection, a shot blasting assembly, a shot recycling purification system, a shot recovery system, a dust removal system and The electrical control part and other components.
Shot blasting chamber structure: This machine is mainly composed of chamber body, double turntable, transmission system, separator, elevator, blasting device, shot blasting device and other parts. There are high-speed rotating shot blasting devices on the top and side of the chamber. The workpiece is projected in the best position. When the workpiece is turned out of the chamber with the turntable, the cleaning effect can be directly seen for the next step. Ejection principle: The shot blasting machine adopts the transverse ejection principle, and the axial direction of the blasting device is at a proper angle with the traveling direction of the workpiece to produce an impact effect and prevent the projectile from being thrown empty and affecting the cleaning effect.

Characteristics of shot blasting chamber: It is a steel plate welded structure with sufficient strength and rigidity. The installation direction of the chamber body and the shot blasting device are determined after three-dimensional optimization design and dynamic simulation, so as to ensure the cleaning effect of the workpiece and maximize the effectiveness of the equipment. The main ejection area of the room is cleaned with high manganese guards. Protection, this guard plate has high impact toughness, can make full use of the projectile reflection kinetic energy, continue to effectively hit the surface of the workpiece, and help improve the cleaning quality and efficiency. A high wear-resistant protective plate with holes is placed on the turntable to prevent large blocks, flashes, and burrs from entering the funnel, screw conveyor and elevator to ensure the normal circulation of projectiles and the normal operation of the equipment. A high-quality shock-absorbing rubber pad is added between the shot blasting device and the connection of the chamber body to reduce the shot blasting vibration and noise and improve the life of the shot blasting device. Designed with multi-layer staggered rubber seals, the device is tightly sealed; because the dust collector fan draws air, a certain negative pressure is formed in the chamber, and no dust escapes.
Shot blasting chamber protection: The life of imported austenitic rolled steel plates is generally 6 times that of traditional wear-resistant cast iron and 65Mn guard plates, and more than three times that of wear-resistant cast steel Mn13, up to 15,000 hours to 18,000 hours.

Advantage
Adopt full manganese steel body + full manganese steel guard plate, service life 20 years;

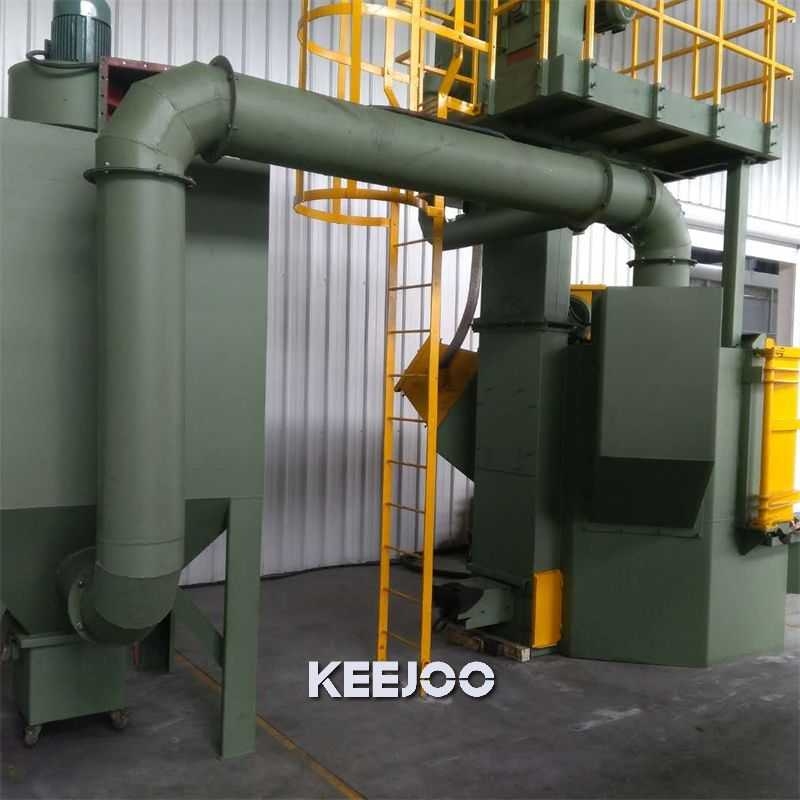

Adopt advanced Venturi dust removal system;
Adopting a secondary separation system for pellets;
Using high-performance Siemens motor + German-style direct-coupling shot blasting device;
Use steel shot flow automatic control system;
Use automatic turntable system;
Adopt magnetic sorting system + horizontal spiral sorting + winnowing sorting system;

 desktop shot blasting machine

The key component of the Chunjiu desktop shot blasting machine is the turntable used to process the workpiece. This type of equipment is most suitable for processing symmetrical parts. The turntable can also be positioned at a certain angle and cooperate with several multi-point positioning polishing heads to realize the processing of asymmetric parts.

Chunjiu has developed a variety of rotary shot blasting machines to meet the needs of customers for material turnover. In addition to the traditional fixed turntable shot blasting machine, there are also shot blasting machines with one or two moving turntables. This type of equipment allows new parts to be loaded while other parts are being processed, thereby reducing processing time.

Chunjiu has extensive experience in this field and has provided customers with machines of various sizes, with parts weighing up to 120 tons.

Chunjiu rotary table shot blasting machine

Chunjiu rotary table shot blasting machine provides full flexibility for shot blasting operations. Whether you are cleaning welded structural parts and processed parts, or cleaning and removing castings, or shot blasting dynamic stress parts, the rotary shot blasting machine can help you reduce the required production time.

This machine is a special shot blasting and strengthening equipment for cleaning and strengthening forgings, castings and gears. It can apply strong shot blasting to the surface of steel and castings in the original state to remove the rust layer, welding slag and oxide scale on it, so that it can obtain a uniform metallic luster, so as to improve the coating quality and fatigue strength of the steel. In order to ensure your company's strict requirements for cleaning workpieces, we adopt the following key technologies and guarantee measures in the scheme and design of this machine:
mechanical
Arrangement of the shot blasting device: Due to the large processing capacity, the high-efficiency shot blasting device is arranged on the top or the side, and the shot blasting complements each other to obtain a uniform cleaning effect.
The fully enclosed sealing mechanism is composed of wear-resistant alloy plates and labyrinth seals, etc., which changes the phenomenon that the shot sand pops out of the outdoors during shot blasting.
The hot zone of the shot blasting chamber adopts imported high-grade guard plate. This material has great density and high hardness. The service life is more than 3 times that of cast steel guard plate. It is seamlessly covered and easy to replace. And make full use of the rebound of the projectile to form a secondary cleaning.
