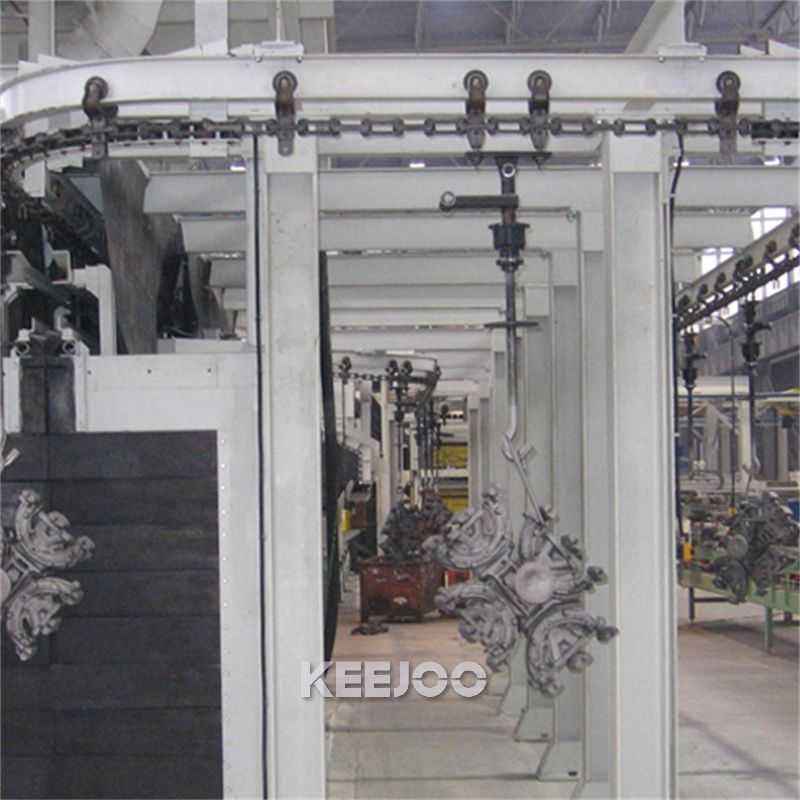

Catenary Continous Hook Shot Blasting Machine Cleaning Valve
Catenary Continous Hooks Shot Blasting Machine For Cleaning Valve
Catenary Continous Hooks Shot Blasting Machine decription
Suitable for shot blasting of large quantities of small and medium workpieces. The workpiece can run continuously or step by step along with the hoisting chain, or adopt advanced accumulation and push catenary conveying work, so that the workpiece is in a stopped state in the loading and unloading and shot blasting areas to realize the fixed-point loading and unloading and the fixed-point shot blasting process. The hoisting weight is 50-2000kg, and the production efficiency is high, the operation is reliable, and the cleaning effect is especially good for the surface and the inner cavity of the workpiece, such as the engine cylinder head, the motor shell, etc. It is an ideal choice for industries such as automobiles, tractors, diesel engines, motors, and valves. The catenary shot blasting machine can be divided into continuous type, stepping type, and accumulation type according to its hanging chain movement mode. According to the chain arrangement, it can be divided into single stroke, double stroke and multi stroke.
Technical data
| Workpiece rotation diameter mm | 850-1800 |
| Hanger height (mm) | 1100-2200 |
| Number of shot blasters | 4+ |
| Power of each shot blaster (kw) | 5.5-37 |
Features
It is easy to integrate into the existing production line, and there are multiple options for gradual expansion and automation (modular design)
Use high wear-resistant materials, long service life
High operational safety, low maintenance, easy maintenance design (easy access to the maintenance area, external bearings, easy replacement of wearing parts)
Strong sand separation ability, combined with magnetic and air cleaning and separation performance
Standard hook system
The design and form of the hook depends on the characteristics of the workpiece and the purpose of shot blasting, and can be divided into the following forms:
Herringbone double hook
Chain drive hook
Motor driven hook
The technical features of this machine:
1. Adopt the most advanced direct coupled blast wheel technology(Cooperative R & D with Germany Thyssenkrupp, patent number: ZL 2015 2 0702933.5)
2. 3D designed blasting angle, side blast wheel make sure the front and back end face incident angle achieve 35°, which can completely clean complicated structures.
3. Wear resistant parts for Blast wheel adopt investment casting Cr28% technology, the lifetime is 3 times of ordinary sand casting chromium material.
4. Abrasive control unit use the new R&D KC90 pneumatic Plug-in technology.
5. KJ3715 Scope of supply
No. Part name QTY
1 BLAST WHEEL ACCORDING TO BLASTING CAPACITY
2 Shot-blasting chamber 1set
3 Front sealing sub-room 1set
4 Rear sealing sub-room 1set
5 Top seal structure 1set
6 Pneumatic open door 2sets
7 Rails and supports system 1set
8 Hanging device 1set
9 Bucket elevator 1set
10 Separator 1set
11 Longitudinal screw conveyor 2sets
12 Lateral screw conveyor 1set
13 Collecting shot screw conveyor 1set
14 Platform railing ladder 1set
15 Pilling system 1set
16 Dust collector 1set
17 Electronic control system 1set
Our service
1. Installation and commissioning issue: We will send one technician to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
