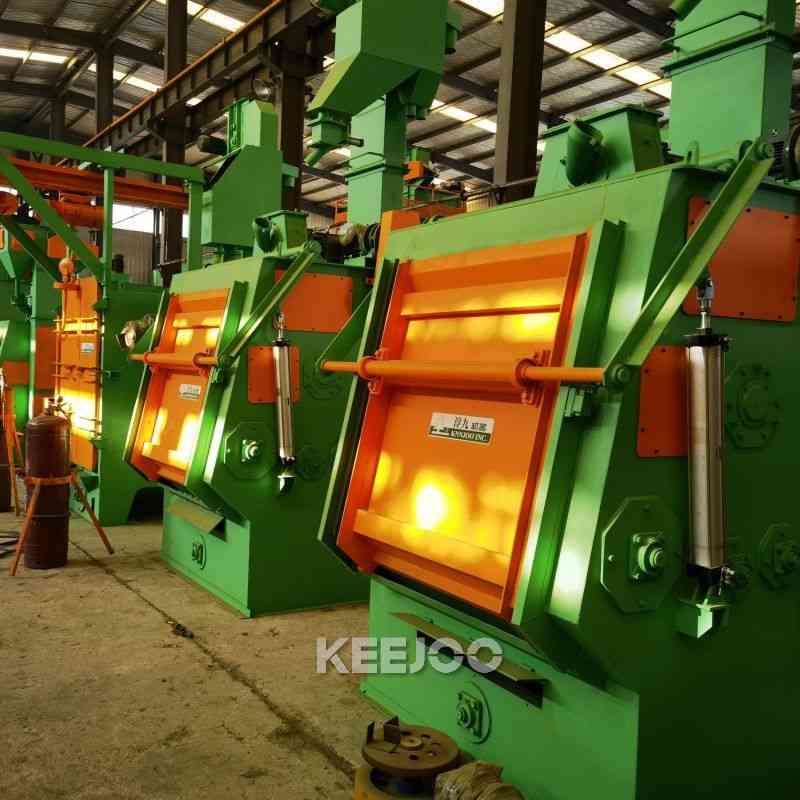

2800kg/h Crawler Shot Blasting Machine Small And Medium Sized Castings Cleaning
Small and Medium-sized Castings Cleaning Crawler Shot Blasting Machine
Crawler Shot Blasting Machine Application

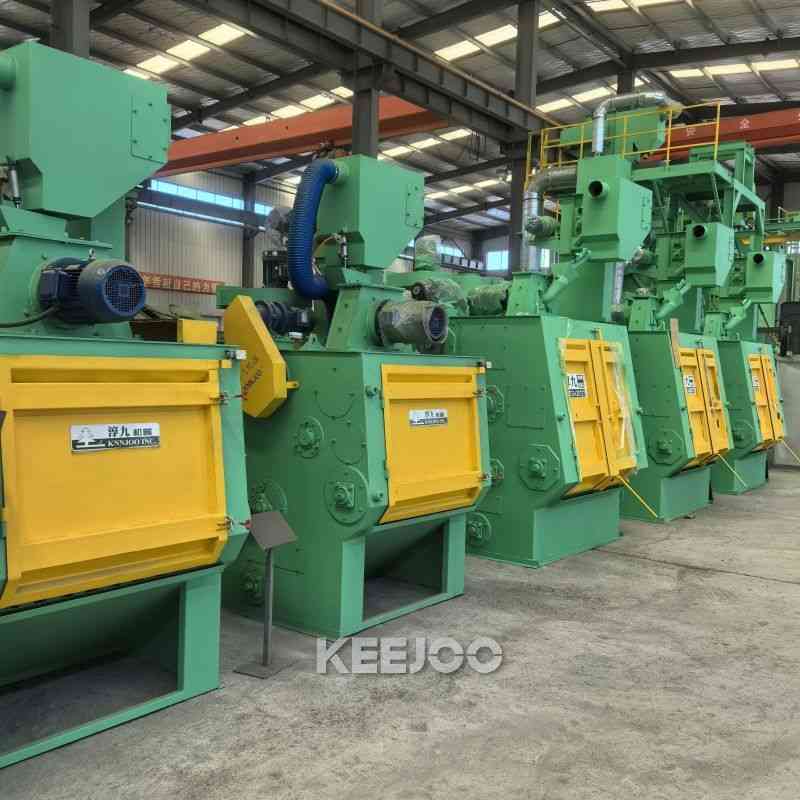

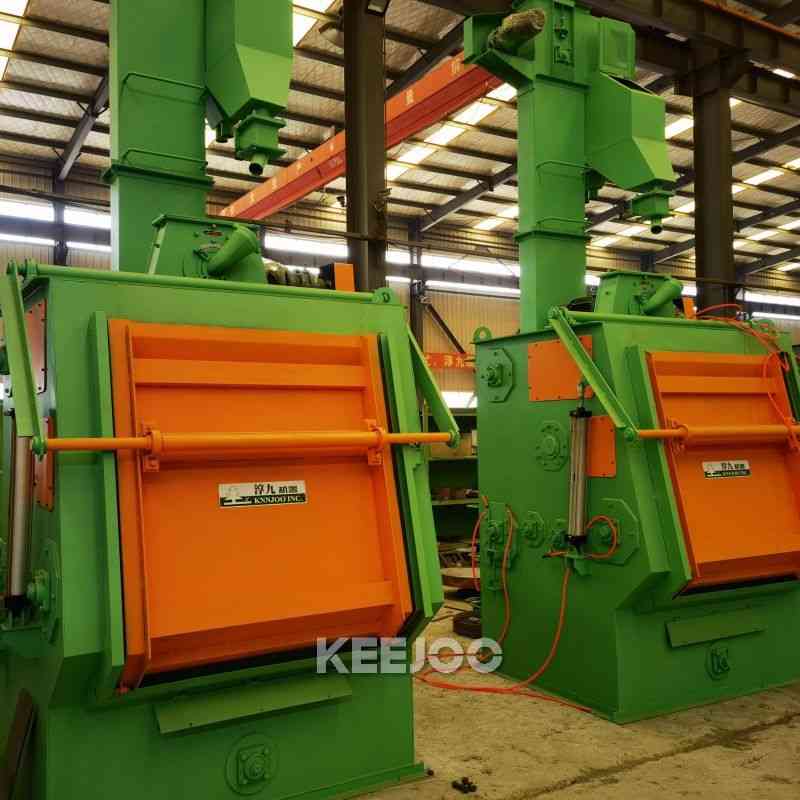

The crawler shot blasting machine, also known as the crawler type shot blasting machine, is a new product designed by comprehensive foreign technology research. It adopts a new and efficient single-disc blast wheel and a hypothetical drum surrounded by rubber belts to make the cleaned workpieces roll evenly and reduce Collision, good cleaning effect, automatic unloading after shot blasting, this machine is widely used in small and medium-sized castings, forgings, stamping parts, non-ferrous metal castings, gears and springs for shot blasting cleaning, descaling and surface strengthening. The whole machine is equipped with a dust collector, which meets the national environmental protection emission standard.
Technical Parameter
Item | Technical parameters | Remark | ||
Blast wheel (High efficient bearing) | Model | Direct coupled | Germany cooperation technology | |
Shot blasting volume | 1×200 kg/min | |||
Power | 1×11kw | |||
Feeding volume | 650 kg | |||
Weight of single part | 35kg | |||
Productivity | 1500～2800kg/h | |||
Bucket elevator | Lifting capacity | 22 t/h | Wear-resistant rubber belt | |
Screw conveyor | Capacity | 22t/h | Screw blade material: 16Mn | |
Power | 1.5kw | |||
Separator | Capacity | 22t/h | Full curtain flow separate technology | |
Required airflow | 1500m3/h | |||
Belt end disk | Diameter | φ1000 mm | Reducer drive | |
Rotation speed | 3.5rpm,0.1m/s | Reducer drive | ||
Hopper lifting system | Power | 3kw | Ring chain hoist | |
Dust collector | air volume | 4900 m3/h | First level: Settling chamber settlement Second level: Pulse back flush bag filter | |
Power | 4kw | |||
Effective volume | ø1100×1050mm | |||
Cleaning efficiency | GB8923-88 A-B Sa2.5 | |||
Compressed air consumption | 0.6 m3/min pressure 0.5-0.6Mp | Mainly used for pneumatic automatic door and abrasive control unit | ||
Equipment dimension | 3972×2600×4568mm | Equipment dimension | ||
Total power | About 28kw | PLC automatic control device can be choose. | ||
WHY CHOOSE US ?
Customer Above Everything
We are a national high-tech enterprise.
3 national invention patents.
24 utility model patents.
22 software copyright certificates.
We have obtained I S O 9 0 0 1,T U V, C E, BV certificates.
Our engineers with more than 20 years of experience will provide the right solution for you.
Products are exported to 49 countries worldwide, including Spain, the United States, France, the United Kingdom, South Korea, Japan, Germany, Australia, Russia, etc
Engineers available to install and debug equipment and provide training services.
FAQ
Q1: Are you a trading company or a factory?
A: We are a manufacturer of shot blasting machines integrating industry and trade.
Q2: Does your product have CE certification?
A: Yes. We have CE certification.
Q3:Can I have your quotation?
A: Please provide us with your workpiece size information and production capacity requirements as much as possible, and then we will recommend a suitable machine for you.
Q4:How to operate and maintain the machine?
A: We will provide you with professional and detailed USERGUIDE of the machine and we also provide foreign technical training services.
Q5:Where is your factory located? How can I visit it?
A: Our factory is located in Qingdao city, Shandong province, China.
You can fly to Qingdao liuting Airport, we will pick you up.
