Máquina granalladora con transportador de rodillos para limpieza de chapa metálica y perfiles

Roller Conveyer Shot Blasting Machine Is Mainly Used To Clean Sheet Metal And Pr

Send Inquiry

Product details

Máquina granalladora con transportador de rodillos, principalmente para limpieza de chapas metálicas y perfiles

Descripción del producto

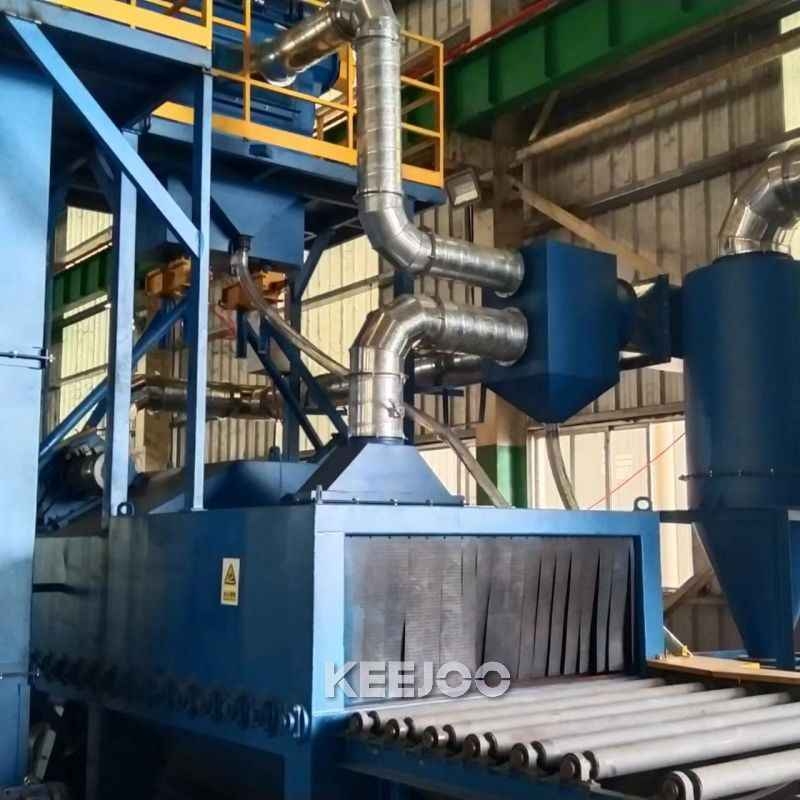

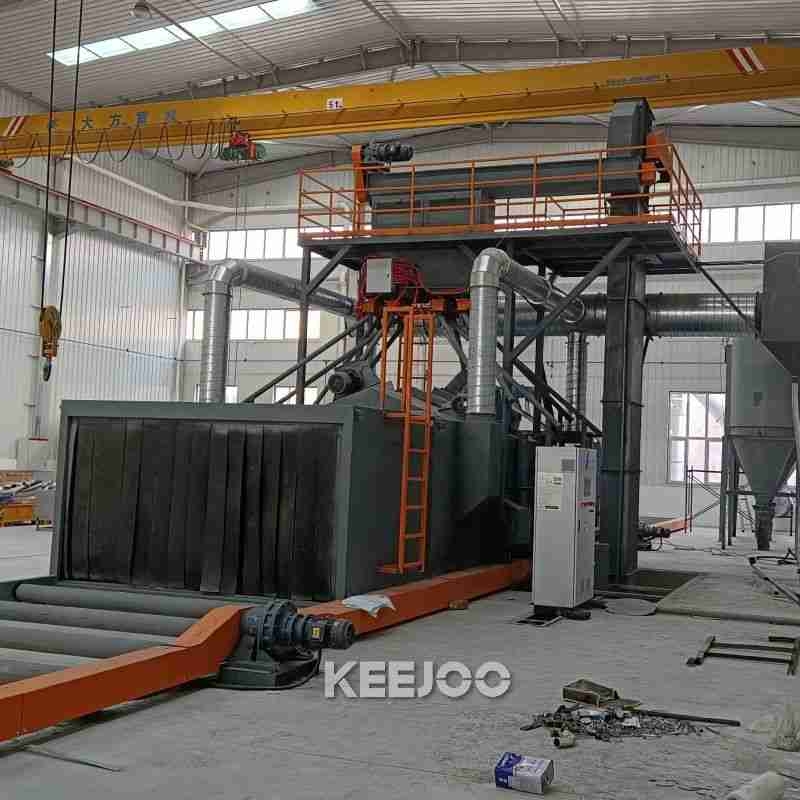

Las máquinas granalladoras con transportador de rodillos se emplean fundamentalmente para la limpieza continua de chapas metálicas y perfiles. Durante el proceso de limpieza, la máquina granalladora de tipo paso con mesa de rodillos se controla eléctricamente. La mesa transportadora de rodillos de velocidad regulable introduce la estructura de acero o el material de acero en la zona de granallado de la cámara de limpieza. Todo el material es impactado por granallas potentes y dens

Datos Técnicos

Modelo	KJ 600G	KJ1000G	KJ1500G	KJ2000G	KJQ2500G	KJQ3000G
Ancho de entrada (mm)	700	1100	1600	2200	2600	3300
Altura de entrada (mm)	550	550	550	550	550	550
Velocidad de procesamiento (m/min)	1,0‑2,3	1,4‑2,4	1,0‑2,3	0,8‑2,5	1,0‑3,0	0,8‑2,5
Cantidad de turbinas de granallado	4	4	4	4/6	6/8	6/8
Potencia unitaria de turbina (kW)	5,5/7,5	11	11/15	11/15	11/15/18,5	11/15/18,5
Separación entre rodillos (mm)	800	650	650	800	800	800
Separación opcional de mesa de rodillos (mm)	400	400	400	400	400	400

Ventajas

Disponemos de diversas máquinas granalladoras con transportador de rodillos para distintas aplicaciones y velocidades de procesamiento.
Indicada para el procesamiento de estructuras de acero, chapas metálicas y perfiles en la industria de preparación del acero.
Puede funcionar como unidad independiente o integrarse en líneas automáticas de transporte, corte por sierra o taladrado.

Aplicación

Limpieza superficial
Eliminación de la corrosión
Desprendimiento de pintura
Eliminación de óxido y cascarilla de óxido

Ámbito de aplicación

Grandes volúmenes de placas de acero, acero en banda, instrumentos de pesaje, ejes de plataforma de remolque, bastidores, radiadores, materiales de piedra, perfiles, herramientas de perforación, vigas H, estructuras de acero, aluminio, tuberías de acero, ángulos de acero, canales de acero, acero redondo, barras de acero, placas de acero, placas de aluminio, bobinas de chapa, acero en banda, torres metálicas, barras de refuerzo, etc.
